WD Humbucker Pickup Ring Set

WD Music

  • ₱270.00 ₱0.00



  • SKU: WDHMRCSET



Will be in stock after

Product Description

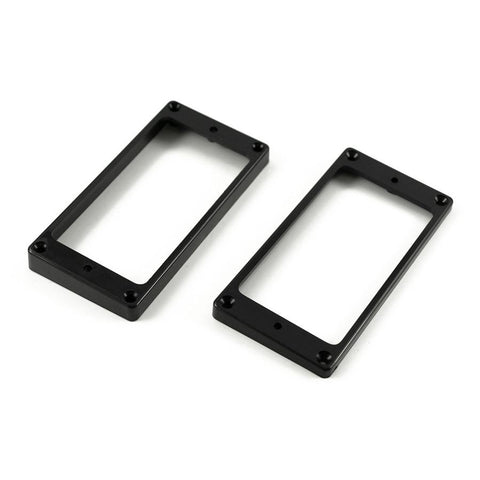

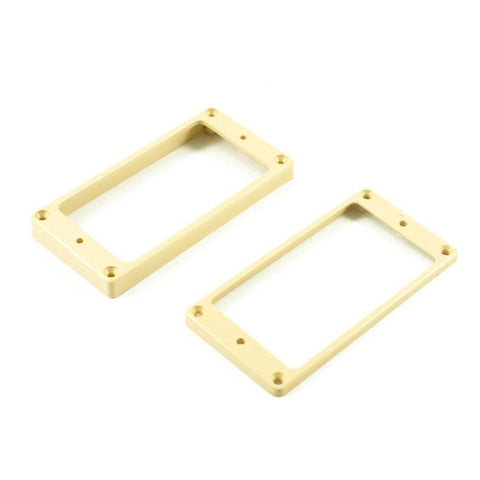

This is a typical set of plastic mounting rings found on most 2 humbucker guitars. It is comprised of 1 high and 1 low ring.

Important Dimensions:

Low = 9/64 inches - 13/64 inches
High = 19/64 inches – 3/8 inches

Interior Dimensions:
Pickup cutout width = 1.5 inches (38.2mm)
Pickup cutout length = 2.76 inches (70.2mm)
Exterior Dimensions:
Exterior width = 1.76 inches (44.7mm)
Exterior length = 3.50 inches (89.1mm)
Exterior heights tall side = .375 inches (9.5mm)
Exterior height short side = .295 inches (7.5mm)
Height holes center to center = 3.07 inches (78mm)
Mounting holes center to center length = 3.185 inches (8.09mm)
Mounting holes center to center width = 1.43 inches (36.3mm)
