Product Description

WD® Plastic Humbucker Pickup Mounting Ring

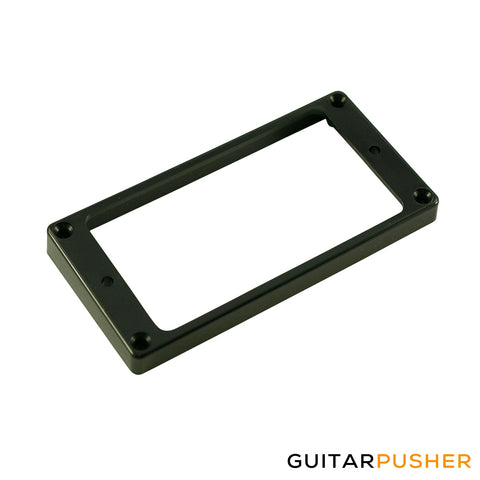

High Flat:

This tall plastic humbucker mounting ring is generally used in the bridge position on a two or three pickup guitar. This mounting ring is angled in height so the side closest to bridge is taller than the side closest to the neck or fretboard.

High Flat- Interior Dimensions:

• Pickup cutout width = 1.5 inches (38.2mm)
• Pickup cutout length = 2.76 inches (70.2mm)

Exterior Dimensions:

• Exterior width = 1.76 inches (44.7mm)
• Exterior length = 3.50 inches (89.1mm)
• Exterior heights tall side = .375 inches (9.5mm)
• Exterior height short side = .295 inches (7.5mm)
• Height holes center to center = 3.07 inches (78mm)
• Mounting holes center to center length = 3.185 inches (8.09mm)
• Mounting holes center to center width = 1.43 inches (36.3mm)

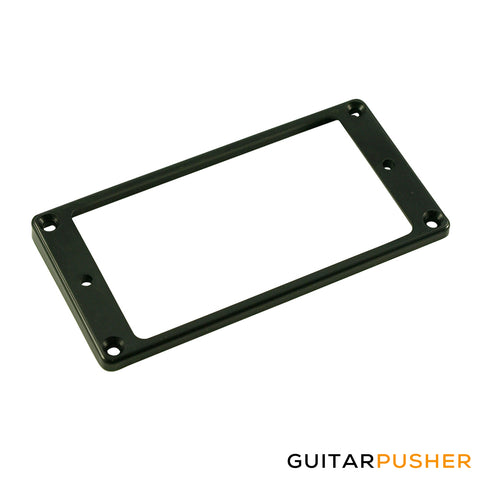

Low Flat:

This is a short plastic humbucker ring with an arched radius, designed for usage in the neck position arched or carved top guitars. This mounting ring is not an exact Gibson® spec replacement ring. It has slightly larger exterior dimensions with an overall (top and bottom) arched design and slightly different mounting hole locations.

Low Flat- Interior Dimensions:

• Pickup cutout width = 1.5 inches (38.5mm)
• Pickup cutout length = 2.75 inches (70.3mm)

Exterior Dimensions:

• Exterior width = 1.765 inches (44.8mm)
• Exterior length = 3.5 inches (88.8mm)
• Exterior heights tall side = .212 inches (5.4mm)
• Exterior height short side = .141 inches (3.58mm)
• Height holes center to center = 3.075 inches (78.1mm)
• Mounting holes center to center length = 3.2 inches (81.3mm)
• Mounting holes center to center width = 1.45 inches (36.8mm)
