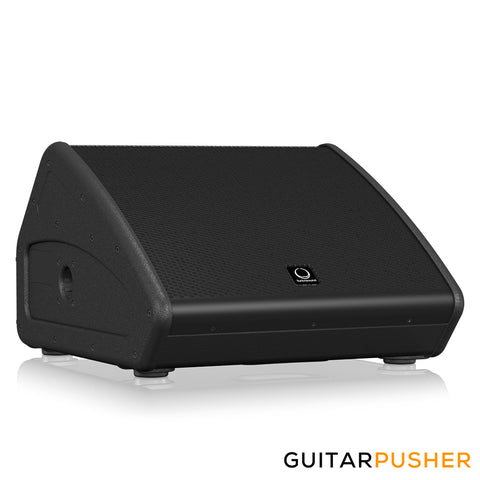

Turbosound TFM122M-AN Coaxial 2500W 2-Way 12" Stage Monitor w/ Klark Teknik DSP Technology & ULTRANET
Coaxial 2500 Watt 2 Way 12" Stage Monitor with Klark Teknik DSP Technology and ULTRANET
2 way stage monitor for touring applications
2,500 Watt power featuring Klark Teknik Class-D technology
Klark Teknik Digital Signal Processing for total system control
ULTRANET digital audio networking connects to mixers and other sources
Carbon fibre loaded 12" neodymium motor low frequency driver
Titanium dome 1.4" neodymium motor compression driver
Low profile design to maximise audience sight lines
Low distortion waveguide provides 60? H x 40? V dispersion
Fully featured user interface with LCD display for ease of navigation
PC remote control software downloadable at turbosound.com
15 mm (5/8") plywood enclosure with fibre glass reinforced composite end cheeks
Hard wearing semi matt black paint finish
Rugged powder coated perforated steel mesh grille
Durable handle for easy lifting and carrying
Mains input and link output on Neutrik powerCON* connectors
10-Year Warranty Program*
Designed and engineered in the U.K.
FLASHLINE MONITORS TFM122M-AN
The 2-way full range TFM122M-AN is a 2,500 Watt 12" powered loudspeaker system that is ideally suited for a wide range of portable speech and music sound reinforcement applications. Designed to work individually without a controller, the TFM122M-AN provides optimal performance for wedge monitoring and is an exceptional choice for FOH, sidefill and delay line applications.
Turbosound is recognised the world over for designing and building some of the most iconic loudspeakers and subwoofers. We take meticulous care and pride in maintaining that reputation by utilising only drivers designed specifically for each application – it’s what sets us apart from the competition. The TFM122M-AN loudspeaker features a carbon fibre loaded 12" neodymium low frequency driver and a titanium dome 1.4" neodymium high frequency compression driver, which is mounted on a 60° horizontal by 40° vertical dispersion low distortion waveguide.
Class-D – Massive Power, Perfect Sound
Equipped with a very efficient and lightweight Klark Teknik Class-D power amplifier, the TFM122M-AN provides an impressive 2,500 Watts of output power in a highly portable and lightweight package. Class-D amplification makes all the difference, offering the ultimate in energy efficiency and eliminating the need for heavy power supplies and large heat sinks.
A high degree of control over the loudspeaker system’s performance is managed by a sophisticated, but easy to use Klark Teknik Digital Signal Processor (DSP), which provides dynamic EQ and transparent limiting for the utmost punch and definition at high output levels – and long-term reliability.
ULTRANET connectivity is provided by two locking etherCON* connectors. Up to 16 independent channels of 24-bit digital audio and control data are transmitted via a single CAT5 cable between compatible digital devices – including mixers, I/O stage boxes, powered loudspeakers and personal monitoring systems. Simplified cable routing and ease of setup translate directly into significant time saved during installation.
Intuitive User Interface
On the rear panel of the amplifier module, the user interface’s LCD display and single rotary encoder provide intuitive access to: position compensation, user EQ control, subwoofer integration and signal routing features. In addition to the balanced XLR input, an XLR output is provided for daisy-chaining more active loudspeakers or for use with active subwoofers. An onboard USB port provides access for remote control of the TFM122M-AN via a free PC computer software download from turbosound.com – as well as convenient DSP firmware updates.
Finished in a highly durable semi matt black paint, the cabinet is constructed from 15 mm (5⁄8") plywood with fibre glass reinforced composite end cheeks and a rugged powder coated perforated steel mesh grille backed with reticulated foam. The TFM122M-AN includes a convenient pole mount socket for use with 35 mm poles/speaker stands to optimise coverage and a durable handle for easy transport. TFM122M-AN’s low profile design provides improved audience line of sight for seamless integration into any application. Mains power input is provided via a Neutrik powerCON* connector.
Designed to provide exceptional and unobtrusive onstage performance for travelling musicians, houses of worship, banquet facilities, night clubs – and a host of other venues, the 2,500-Watt TFM122M-AN puts touring-grade sound quality into a scalable loudspeaker system that is supremely portable and versatile.
|Frequency Response||70 Hz – 18 kHz ±3 dB
63 Hz – 20 kHz -10 dB
|Nominal Dispersion||60° H x 40° V @ -6 dB points, rotatable|
|Maximum SPL||130 dB peak|
|Transducers||1 x 12" (315 mm) LF driver
1 x 1.4" (33 mm) HF compression driver
|Limiter||Independent HF, LF, peak and rms|
|Maximum output power*||2500 W*|
|Protection||Short circuit, thermal|
|Input / Link||1 x combo jack/XLR, 1 x XLR|
|Ultranet input/link||2 x RJ45|
|Mains Supply||Neutrik powerCON input 20A and link 15A†|
|DSP||Rotary push-encoder and level control
Buttons for Process, Setup, Exit, Enter
User DSP Functions
|Factory EQ presets||Positioning, Sound mode, FBQ|
|Display||LCD 128 x 32, blue , backlit|
|Delay||0 - 300 ms|
|Equalisation||High and low shelving EQ, 2 x parametric EQ|
|Limiter||Zero attack input limiter|
|Presets||20 total presets, 19 user-definable|
|Crossover||High pass L-R 24 dB/oct|
|Protection||Lock-out function for all settings|
Ultranet Digital Network
|Power consumption||180 W @ 1/8 max power**|
|Dimensions (H x W x D)||302 x 452 x 504 mm (11.9 x 17.8 x 19.9")|
|Net weight||16.5 kg (36.3 lbs)|
|Construction||15 mm (5/8") birch plywood + polypropylene plastic|
|Finish||Semi matt black paint|
|Grille||Powder coated perforated steel|
†Only qualified personnel are allowed to modify the AC-Main cord and to adhere to all applicable national standards.
**Power consumption for a single device only.
