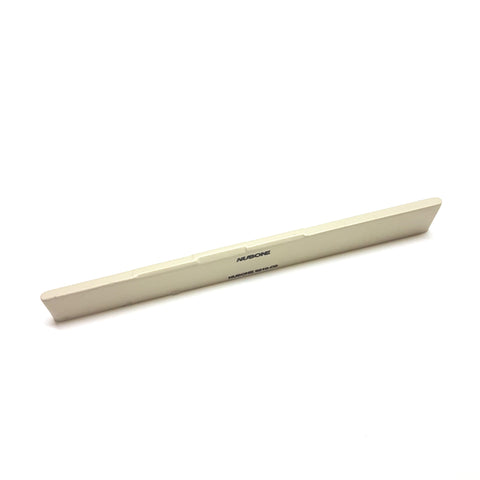

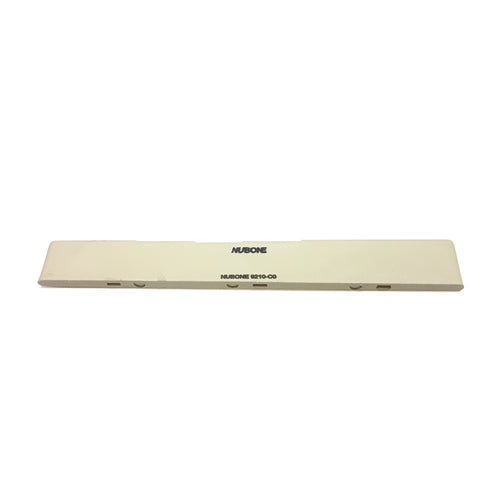

Graphtech NuBone Acoustic Saddle Classical - Tall (per piece) LC-9210-00
Product Description
TheLC-9210-10is a great option to replace or upgrade the saddle on your classical guitar. It is fully compensated to help improve the performance of your guitar.
NuBoneis a derivative of Graph Tech's highly resonant TUSQ material, manufactured to very close tolerances under high heat and pressure. We use specific ratios that contribute to NuBone's hardness, workability, appearance, and most importantly, guitar performance. Odorless when sanded, it is strong, outlasting and outperforming plastic. NuBone is the answer!

|
Consistentquality |

|
Increased harmonic content |

|
Ivorywhiteincolor |

|
Compensated Saddle |
| Measure | Length | Width |
Height |
E to E |
| inches |
3.150" |
0.101" |
0.394" | NA |
| inches | 35/32" |
3/32" | 13/32" | NA |

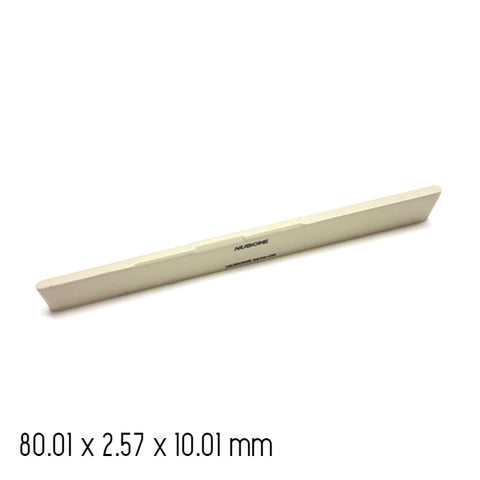

| millimeters | 80.01mm | 2.57mm | 10.01mm |
NA |
Note:All Graph Tech nuts and saddles are slightly long and wide to ensure extra room to achieve a perfect fit for your guitar. This extra material can easily be removed with fine grit sandpaper.
NuBone Saddle Installation Instructions
NuBone Frequently Asked Questions
NUBONE ACOUSTIC SADDLES
WHY CHANGE YOUR SADDLE?
A guitar saddle is designed to transfer the vibrations through the bridge into the top wood of the guitar. This quick and simple upgrade will have an amazing affect on your instruments tone, harmonic content, and playability.
Compensated saddles improve the playability by correctly setting each strings intonation to help produce the best tone and performance possible. Graph Tech produces a wide range of fully compensated, partially compensated and saddle blanks and slabs.
WHAT IS AVAILABLE?
|
Compensated saddles: |
almost all of the work is done, all that is needed is final fit or length, height and thickness. |
| Saddle blanks: |
Saddle blanks have some shaping done but some shaping will need to be done as well as final fit for length, height and thickness |
| Saddle slabs: |
Saddle slabs are simply a block of material that can be used to make the entire saddle (or anything else) from scratch. |
HOW TO MEASURE MY SADDLE.
 |
|||
| 1.Remove your existing saddle with tweezers or fine point pliers. | 2.Measure the overall length of your existing saddle. Be as accurate as you can by using a ruler, calipers or a tape measure. Record this dimension. | 3.Measure the width of your existing saddle. Be as accurate as you can by using a ruler, calipers or a tape measure. Record this dimension. | 4.Measure the overall height of your existing saddle from the bottom to thehighest point.Be as accurate as you can by using a ruler, calipers or a tape measure. Record this dimension. |
