Free The Tone CU-5050LINK Patch Cable
FREE THE TONE succeeded in development of a cable with an uncommon 5 mm diameter. To establish both sound quality necessary to connect effects units together and usability, we pulled out all the stops and applied all of our accumulated know-how. A cable that is too thick is difficult to use for connection between two effects units and the cable own tension can apply force to the soldered portion and this can lead to breakage. The FREE THE TONE CU-5050 Link Cable is durable and long life due to various inventions implemented to reduce the load on the soldered section.
This is a warm sounding cable for instrument use with amazing clarity that transmits all the nuances of the vibration of your strings. The basic concept in developing this cable was The sound that makes you want to keep on playing!" You will experience a sound that is as close to the raw sound of your guitar or bass as possible. All of the characteristics of your guitar or bass will be maintained while at the same time, any harsh electrical noise picked up by the pickups in your instrument will be eliminated.

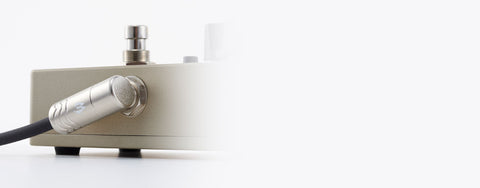

The plug used in the CU-5050 has unique wave shape grooves in its body to provide proper hold for plugging/unplugging.
The inside of the plug also has a special shape unique to the FREE THE TONE product. The tip (hot) inside the plug has a tongue shape connection terminal and a large ground contact area is provided for connecting the core and ground wires, and as a result, the sound quality and intensity is improved compared with other plugs.
The sleeve to which the shield is connected has a blade to clamp the cable firmly and this reduces the possibility of breakage.
Since effects units have many different jack placements and orientations differs, four types are available to handle various cases.

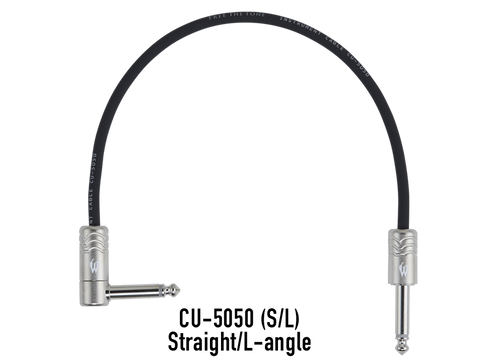

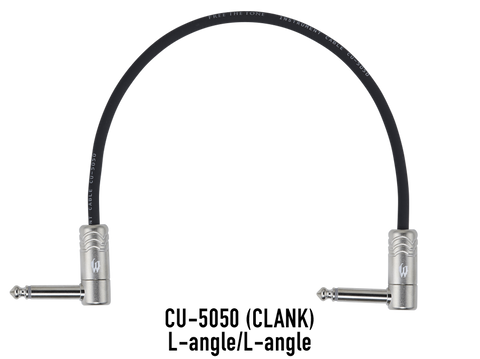

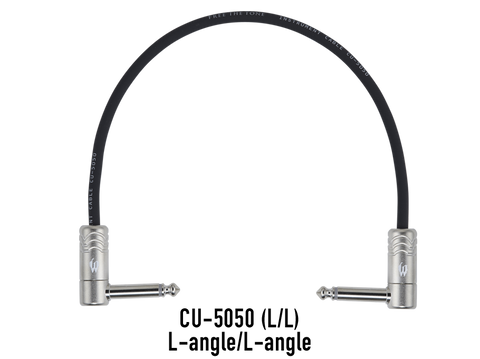

Plug type: Straight/L-angle (S/L) Straight/Straight (S/S) Clank typeÛ_ÌÝÌÝL-angle/L-angle (CLANK) L-angle/ L-angle(L/L)
- Length: 15cm/20cm/30cm/50cm/75cm/100cm
- Conductor Size : 0.25mm_
- Construction : 50/0.08A OFC (No/mm)
- Insulation Thickness : 0.93mm(±0.05)
- Inner Jacket Thickness : 0.25mm
- Shield Diameter : 3.50mm
- Jacket Thickness : 0.75mm(±0.10)
- Diameter : 5.00mm
- Maximum conductor resistance(20̬_C) : 100 (½/km)
- Capacitance(1kHz): Approx.80 (pF/m)
