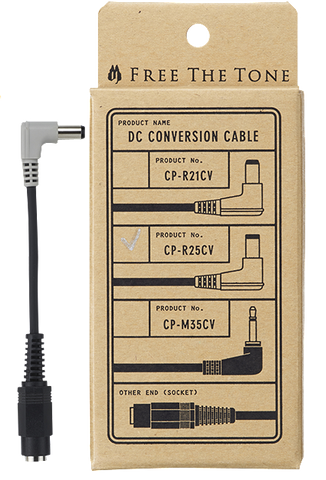

Free The Tone DC Polarity Conversion Cable
Product Description
Regarding the polarity of the DC jack commonly used in an effects unit power supply, in almost cases the inner center pin is minus (-)" and the outer sleeve is plus (+)", with a 2.1 mm center pin diameter. Therefore, commercially available AC adapters and power supply units mainly support this specification. But there are effects units that use mini-plugs, inverted polarity center plus", or a 2.5 mm center pin in the DC jack. A DC conversion cable has to be used to connect such an effects unit to a common adapter or power supply unit.
- CP-M35CV is a conversion cable for an effects unit using a 3.5 mm mini-plug to receive electric power.
- CP-R25CV is a polarity inverting conversion cable for an effects unit using a 5.52.5 mm barrel connector with center plus (+) polarity.
- CP-R25CV can be used for Eventide¨ TIME FACTOR/MOD FACTOR/PITCH FACTOR/SPACE and LINE6¨ DL4/MM4/FM4 (as of September 2015).
- CP-R21CV is a polarity inverting conversion cable for an effects unit using a 5.52.1 mm barrel connector with center plus (+) polarity.
