EVH 5150III 15-Watt LBX Amplifier Head, 230V EUR
Product Description

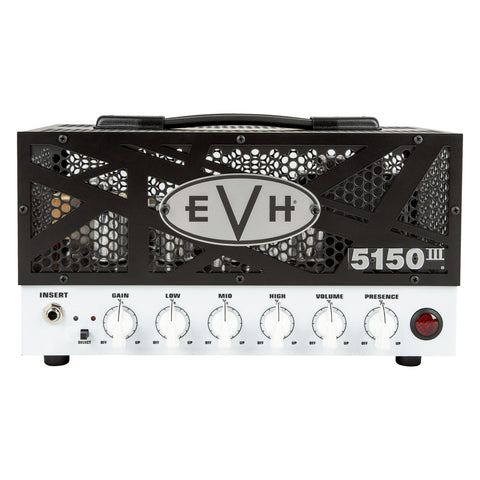

5150III® 15W LBX HEAD
mighty sonic force to be reckoned with, the EVH 5150III® 15W LBX is an easy-to-carry “lunchbox” guitar amp head–but don’t let its diminutive size fool you; it’s packed to the gills with searing tone!
Armed with five ECC83S (12AX7) and two EL84 tubes for incredible high gain sound, it performs like an arena-filling champ. Two flexible channels, the famous EVH Blue “Crunch” and Red “Full Burn,” combine with the familiar low/mid/high/presence tone controls and 1/4–power switch so you can easily dial-in your own roaring Variac-less “brown” sound.
Dial up a tasty crunch for rhythm work and then when it’s time for a face-melting solo, stomp on the included footswitch to call up an intense lead tone with tons of singing sustain.
For colossal tone and serious crunch in a compact package, look no further than the EVH 5150III® 15W LBX!
FEATURES
PURE RAUNCH 'N ROLL POWER
This diminutive amp packs a sonic punch, with two distinct channels. The Blue channel delivers super heavy crunch for rhythm work, the Red “Full Burn” channel rattles the foundation with that sizzling modern Brit sound with high-gain attitude for all of your face-melting solos.
CRANK IT!
Bedroom players can utilize the 1/4-power switch to reduce the head to 3.5 watts and avoid disturbing the rest of the household, while studio and live musicians can leverage this same feature to turn up the head for a squeezed and spongy tone. The LBX also has global gain, volume, EQ presence and resonance controls.
BIG SOUND, EASY TRANSPORT
Five JJ ECC83S (12AX7) preamp tubes up the ante with plenty of saturated, high-gain tone synonymous with Van Halen’s high-powered sound. A pair of JJ EL84 power tubes produce Eddie’s scorching tonal attitude with a modern twist that boasts distinguished harmonics similar to early British-style tube amps.
TAP OF THE FOOT
Toggling from the Crunch (Ch. 1) to Full Burn (Ch. 2) is just a mere tap of your foot away with the 1-button footswitch.
SPECS
GENERAL
Model Number | 2256000000 |
---|---|
Est. U.S. Street | $599.99 |
Series | EVH® 5150III® Heads |
Color | Black Cage |
Amplifier Type | Tube |
Height | 7" (17.8 cm) |
Width | 12.5" (31.2 cm) |
Depth | 6" (15.3 cm) |
Weight |
ELECTRONICS
Controls | Shared Gain, Low, Mid, High, Dual Volume, Presence, Resonance |
---|---|
Channels | Two - (Blue) Crunch / (Red) Full Burn |
Voltage | 120V (Also Available in 100V, 110V, 220V, 230V, 240V) |
Wattage | 15 Watts |
Effects Loop | 1/4" (Send/Return) |
Inputs | One - 1/4" |
Speaker Jack | One - 1/4" |
Rectifier | Solid State |
Total Impedance | 4, 8, or 16 ohms |
Power Cable | IEC |
CONSTRUCTION
Grill Cloth/Material | Black Metal |
---|---|
Amplifier Covering | Black |
Cabinet Material | Aluminum/Steel Chassis |
TUBES
Preamp Tubes | 5 x JJ ECC83S (12AX7) |
---|---|
Power Tubes | 2 x JJ EL84 |
HARDWARE
Control Knobs | White Chicken-Head Style Pointer |
---|---|
Handle | Vinyl with Metal Insert and Black End Caps |
Front Panel | White |
ACCESSORIES
Footswitch | 1-Button Footswitch Included |
---|---|
Footswitch Connection Type | 1/4" |
Recommended Cover | Optional P/N 0221600006 |
Included Accessories | 5-Foot Speaker Cable |
