Product Description

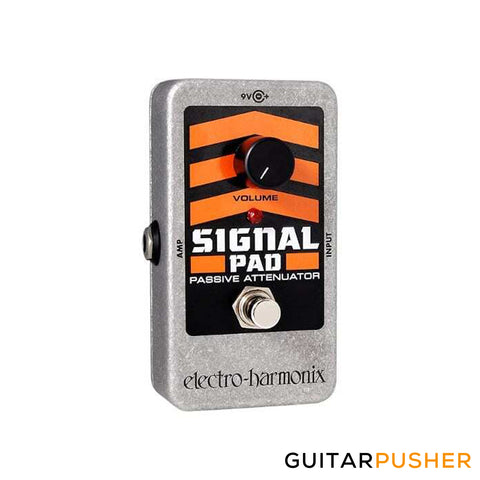

SIGNAL PAD

PASSIVE ATTENUATOR

Instantly switch to a different preset volume, with a fully-passive and color-free circuit!

The EHX Signal Pad is a passive attenuator that allows you to instantly switch to a different preset volume. It’s like your guitar’s volume knob, with a fully-passive and color-free circuit. Leave your amp’s volume set high for overdrive, and use the Signal Pad to lower your level for a clean sound — then switch it off to kick in your amp’s natural overdrive. You can also experiment with the Signal Pad anywhere in your effects chain — you’ll bring out new tonal combinations from your favorite old pedals.

• Turn any single channel amp into a two channel setup
• Switch from lead to rhythm on the fly
• Use in front or after any effects to change the tone of that effect
• True bypass
• 9V battery included

SPECIFICATIONS

• Circuit: Analog
• Bypass: True Bypass
• Audio: Mono
• Power Supply: Optional 9V battery or 9.6VDC-200mA power adapter not included
• Dimensions (in): 4.5 x 2.75 x 2.1
• Current Draw: 3mA
• Year Released: 2008
• UPC: 683274010915
