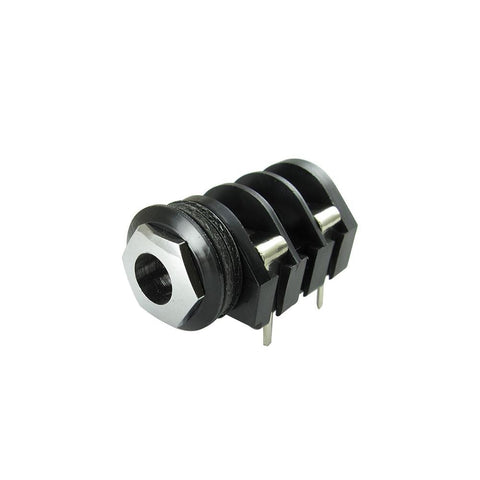

Cliff 1/4 inch Jack PC Mount for Marshall
Product Description

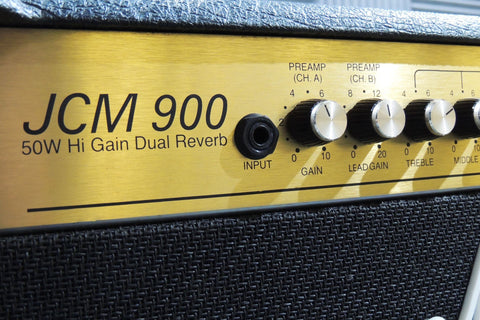

Input Jack. PC board terminals, switched. Used in modern Marshall amps, or as a replacement part for Marshall JCM 900 cabinets and more.
For white version, see S-H955-X
Features:
- Low-noise Ni-Ag® Alloy Self-Cleaning Contacts for superior performance and reliability
- 'Kinked' legs for snap-in PCB mounting on PC-A and PC-C styles to facilitate pre-assembly and wave soldering
- Tough, molded grade 1 black Nylon body.
- Made in the U.K.
- Supplied with a black nylon hexagonal mounting nut
- Designed to receive both mono and stereo ¼" jack plugs
| Withstand Voltage: | 2000VDC Min. |
| Maximum Current: | 5A |
| Temperature Rating: | -10°C ~ +70°C |
| Life (Minimum): | 10,000+ Operations |
| Nominal Contact Resistance: | < 50 mΩ |
| Channel | Our Part Number | UPC/EAN |
|---|---|---|

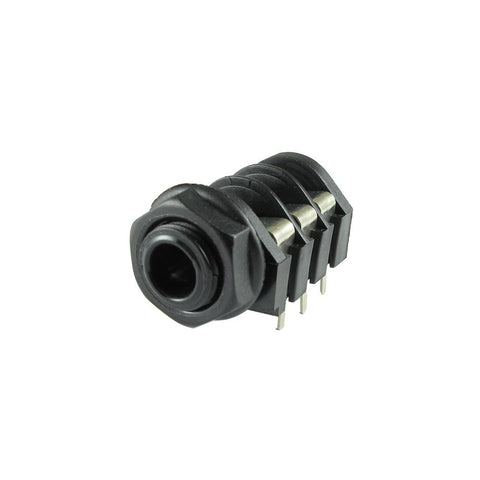

| Mono | S-H903 | 609722143455 |

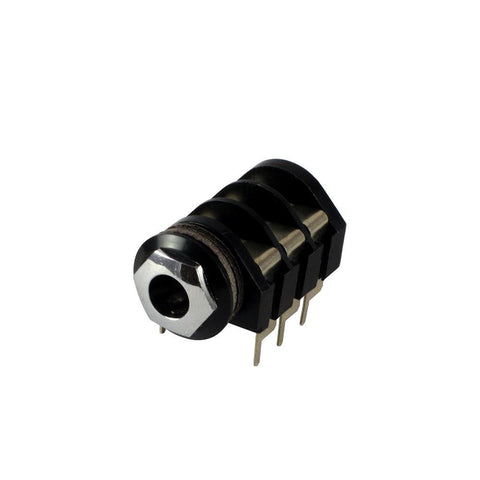

| Stereo | S-H904 | 609722143479 |
