Alpha 25k Potentimeter for Active System Metric Size 8mm hole Tall Bushing 3/8 inch
Time to replace your pots with the time-tested factory potentiometer - Alpha.
Alpha is an industry name in affordable but reliable potentiometers..
25k and 50k is used in Active circuits.
Metric 8mm bushing diameter is perfect for Asian-made guitars with small hole such as Ibanez, Squier, JCraft, Cort, Tagima, Epiphone, Elegee, D&D, etc.

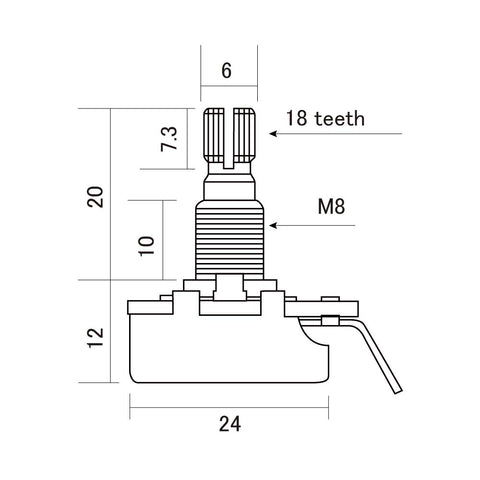

Specs for this Stock:
|Value||25k (for active systems)|
|Bushing Diameter||8mm (fits most Asian/Japan-made guitars)
3/8 inch - fits wood top guitars
It can be fitted for 1/4 applications for pickguard or control plate mount by adding a nut
|Taper||Linear or Audio / Log Taper (pls select variant)|
|Shaft||18 Coarse Spline, Split Shaft (fits asia made knobs)|
