Vitoos DD8-SV2 8-Output Fully Isolated Power Supply (9-18V)
Product Description

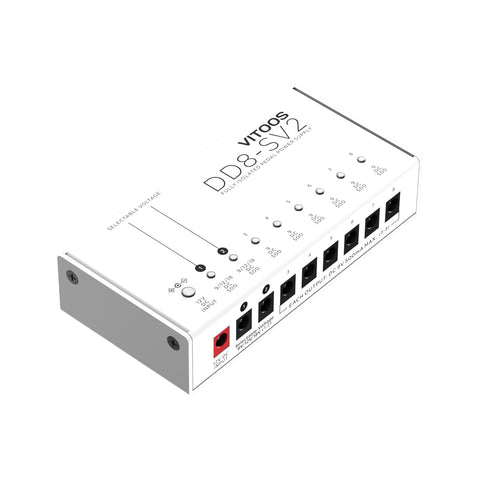

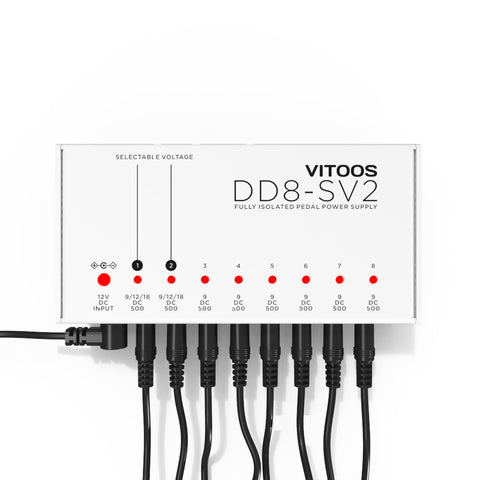

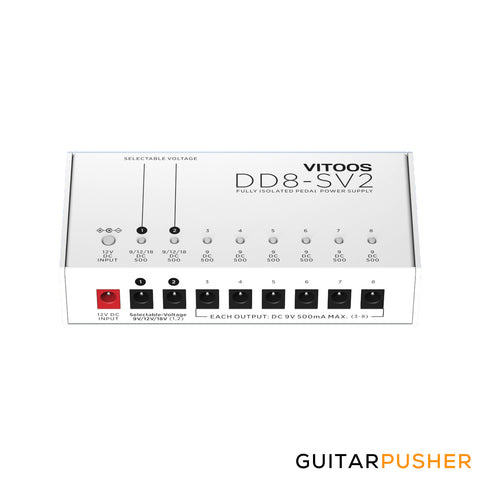

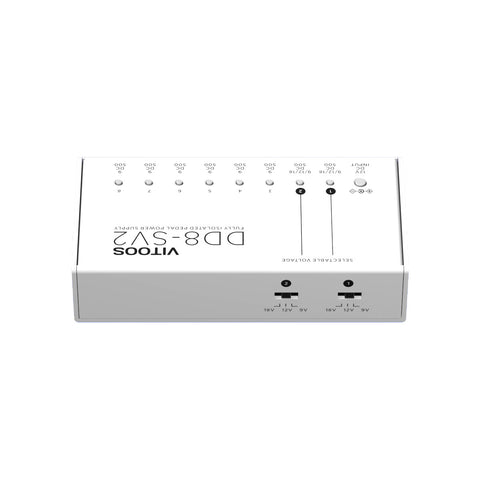

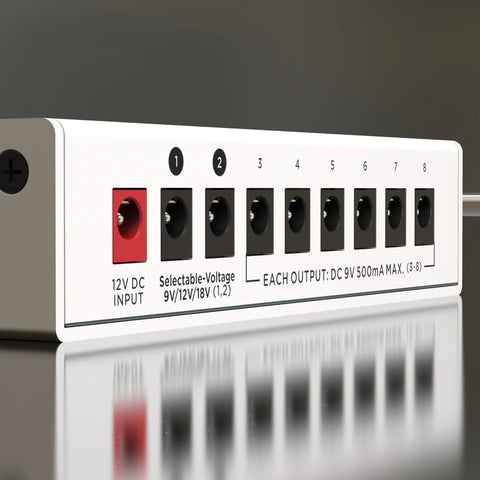

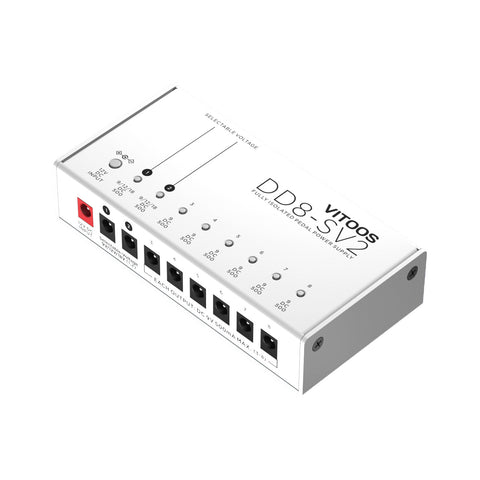

VITOOS DD8-SV2
This is a true isolated Power Supply (PSU) with 8 isolated outputs. Isolated PSU is like having a separate power adapter for each of the 8 outputs. It achieves true circuit isolation through mini transformers in each of the outputs.
You can test that each section's ground are isolated. It is also a power conditioner which supplies a predictable voltage all the time and keeps your pedals in constant performance from one show to another.
Guitar Pusher backs it up with 1 year personal warranty. This is a great alternative to some Voodoo Labs or Cioks.
SPECIFICATIONS:
| main body SIZE | 140*70*30mm |
| main body WEIGHT | 200g |
| PACKAGE SIZE | 273 x 236 x 64 mm |
| PACKAGE WEIGHT | 1333g |
| INPUT | 12V3A |
| OUT POWER | 27W（MAX） |
| OUT CHANNEL | 8 |
| OUTPUT 1-6 | 9V500mA |

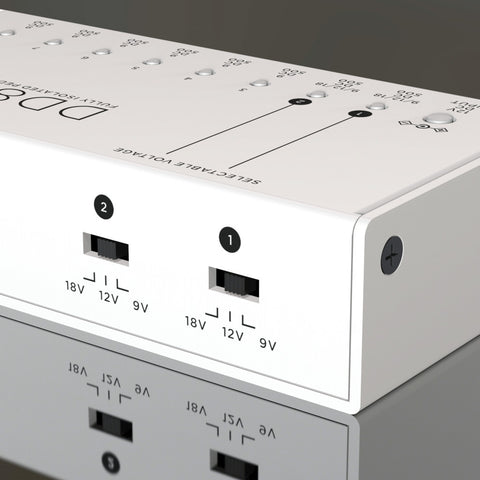

| OUTPUT 7-8 | 9V/12V/18V 500mA |
| Short/overload protection |
YES |
| ISOLATED | FULLY ISOLATED |

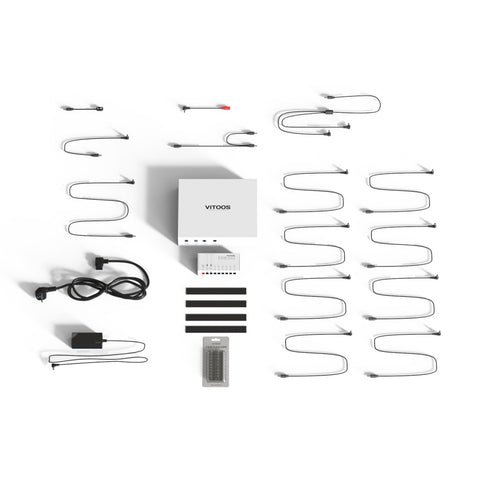

PACKING LIST:
- 1 x AC to DC Adapter 12V3A (negative polarity on the inside)
- 1 x Straight to Right-angled 30cm
- 8 x Straight to Right-angled 60cm
- 1 x Straight to Right-angled 90cm
- 1 x DC Voltage Doubler 2 Straight to 1 Straight male
- 1 x DC Current Doubler 2 Right-angled to 1 Straight male
- 1 x Battery clip on 9V battery Straight male (negative polarity on the inside)
- 1 x Polarity conversion Right-angled male to Straight female 15cm
- 4 x HOOK& LOOP Straps
- 1 x Cable Locker Set
