Vitoos AD5S PRO 5-Output Fully Isolated AC-DC Switching Power Supply (9-18V)
Product Description
AD5S PRO - 5 OUTPUTS
INPUT: AC 100V~240V 50HZ/60HZ

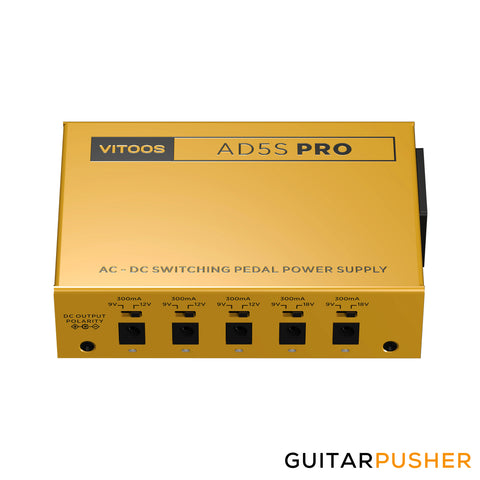

OUTPUT 1-3: 9V/12V 300MA
OUTPUT 4-5: 9V/18V 300MA
LINK
SPECIFICATIONS
| main body SIZE | 130*88*35mm |
| main body WEIGHT | 400g |
| PACKAGE SIZE | 273 x 236 x 64 mm |
| PACKAGE WEIGHT | 1717 |

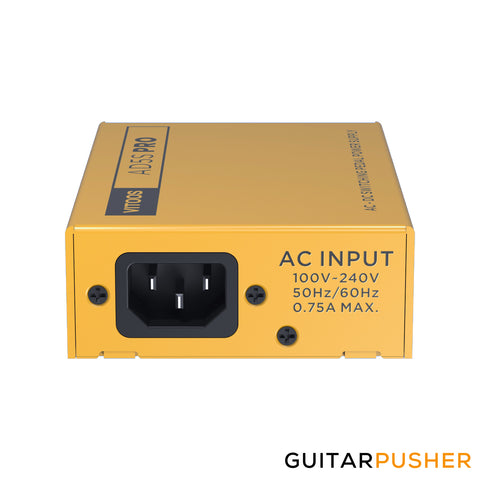

| INPUT | AC 100V~240V 50HZ/60HZ |
| OUT POWER | 21.6W（MAX） |
| OUT CHANNEL | 5 |
| OUTPUT 1-3 | 9V/12V 300mA |
| OUTPUT 4-5 | 9V/18V 300mA |
| Short/overload protection |
YES |
| ISOLATED | FULLY ISOLATED |
HIGHLIGHT
PACKING LIST
1 x AC Cord
1 x IEC Adapter
1 x Straight to Right-angled 30cm
5 x Straight to Right-angled 60cm
1 x Straight to Right-angled 90cm
1 x DC Voltage Doubler 2 Straight to 1 Straight male
1 x DC Current Doubler 2 Right-angled to 1 Straight male
1 x Battery clip on 9V battery Straight male (negative polarity on the inside)
1 x Polarity conversion Right-angled male to Straight female 15cm
4 x HOOK& LOOP Straps
1 x Cable Locker Set
