Product Description

Powerful & Compact Pedalboard Power Solution

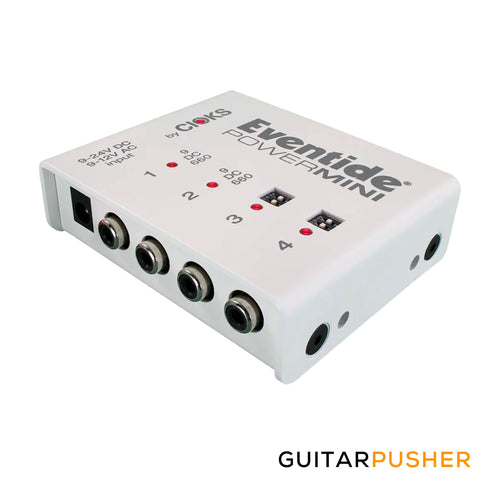

PowerMini is a super compact, isolated power supply for smaller pedalboards that ensures your pedals will achieve maximum fidelity. PowerMini provides four outputs at 600 mA (with 2 outputs switchable to 9, 12, 15 or 18V).

Also available is the PowerMini EXP, which is the perfect companion to PowerMax. Simply connect PowerMini EXP to your PowerMax via the courtesy 24V outlet and you are good to go.

Each PowerMini comes with 7 flex cables compatible with most pedal brands.

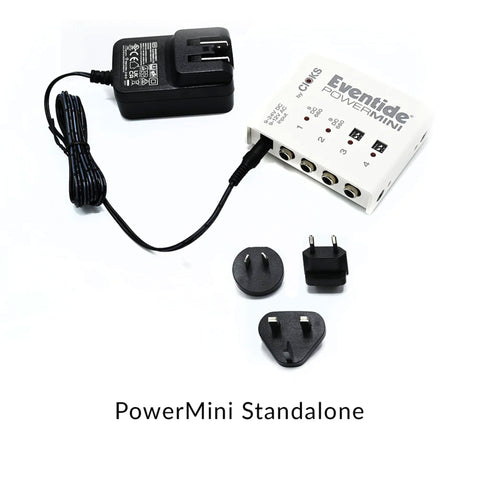

PowerMini Standalone

• 18V DC / 36W power adapter with low-profile inline C7 6’ AC power cord
• Mounting hardware (2 screws and a hex-key)
• Product sheet (drill guide)
• Flex & DC Link cable guide
• 7 Flex Cables:
• 2 x 1030 - black, 30cm, center negative, type 1 (Eventide Rose, MixingLink & BOSS type)
• 2 x 1050 - black, 50cm, center negative, type 1 (Eventide Rose, MixingLink & BOSS type)
• 2 x 4050 - green, 50cm, center positive, type 4 (Eventide all H9s, TimeFactor, ModFactor, PitchFactor & Space)
• 1 x 1533 - 3-way daisy chain, black, 50-30-30cm, center negative, type 1 (BOSS type)

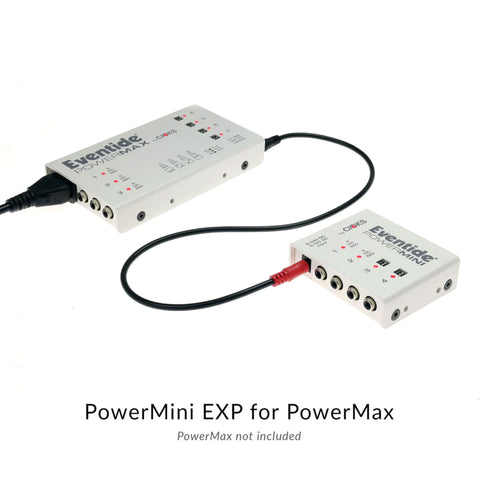

PowerMini EXP (PowerMax Expansion)

• Comes with 24V DC Link cable, black, 50cm (EIAJ to red 5.5/2.1mm center positive DC plug)
• Mounting hardware (2 screws and a hex-key)
• Product sheet (drill guide)
• Flex & DC Link cable guide
• 7 Flex Cables:
  • 2 x 1030 - black, 30cm, center negative, type 1 (Eventide Rose, MixingLink & BOSS type)
  • 2 x 1050 - black, 50cm, center negative, type 1 (Eventide Rose, MixingLink & BOSS type)
  • 2 x 4050 - green, 50cm, center positive, type 4 (Eventide all H9s, TimeFactor, ModFactor, PitchFactor & Space)
  • 1 x 1533 - 3-way daisy chain, black, 50-30-30cm, center negative, type 1 (BOSS type)
