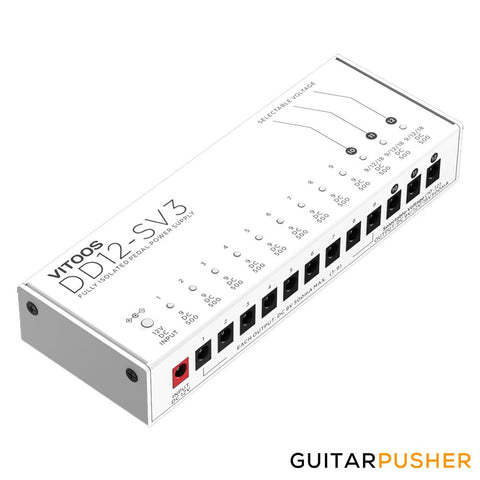

Vitoos DD12-SV3 12-Output Fully Isolated Power Supply (9-18V)
Product Description
INPUT:12V3A
OUTPUT1-9:9V 500MA
OUTPUT10-12:9V/12V/18V 500MA ADJUSTABLE
OUTPUT1-9:9V 500MA
OUTPUT10-12:9V/12V/18V 500MA ADJUSTABLE
SPECIFICATIONS
| main body SIZE | 190*70*30mm |
| main body WEIGHT | 356g |
| PACKAGE SIZE | 273 x 236 x 64 mm |
| PACKAGE WEIGHT | 1530g |
| INPUT | 12V3A |
| OUT POWER | 27W（MAX） |
| OUT CHANNEL | 12 |
| OUTPUT 1-9 | 9V500mA |
| OUTPUT 10-12 | 9V/12V/18V 500mA |
| Short/overload protection |
YES |
| ISOLATED | FULLY ISOLATED |
DD12-SV3 VS DD12-AV4
| DD12-SV3 | model | DD12-AV4 |
| 12 | channel | 12 |
| 12V3A | input | 18V2A |
| 36W |
Wattage
|
36W |
| 9 | Includes 9V output | 8 |
| 3* 9V/12V/18V | Adjustable voltage | 4* 6V~18V |
| 190*70-30mm | size | 190*70*30mm |
| 356g | weight | 356g |
INCLUSIONS:
1 x AC to DC Adapter 12V3A (negative polarity on the inside)
1 x Straight to Right-angled 30cm
12 x Straight to Right-angled 60cm
1 x Straight to Right-angled 90cm
1 x DC Voltage Doubler 2 Straight to 1 Straight male
1 x DC Current Doubler 2 Right-angled to 1 Straight male
1 x Battery clip on 9V battery Straight male (negative polarity on the inside)
1 x Polarity conversion Right-angled male to Straight female 15cm
4 x HOOK& LOOP Straps
1 x Cable Locker Set
12 x Straight to Right-angled 60cm
1 x Straight to Right-angled 90cm
1 x DC Voltage Doubler 2 Straight to 1 Straight male
1 x DC Current Doubler 2 Right-angled to 1 Straight male
1 x Battery clip on 9V battery Straight male (negative polarity on the inside)
1 x Polarity conversion Right-angled male to Straight female 15cm
4 x HOOK& LOOP Straps
1 x Cable Locker Set
