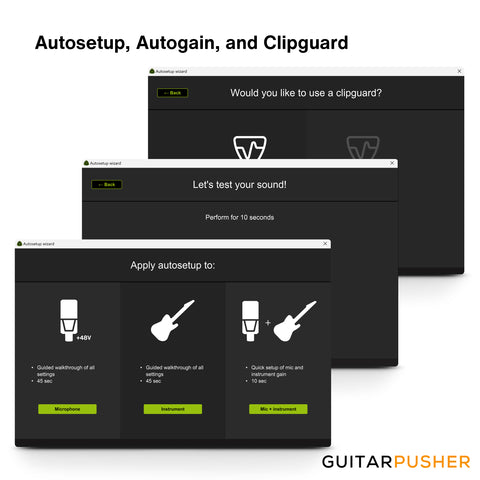

Clipguard lets you perform without clipping. A single click is enough, and your signal is safe from clipping even when things get loud. Fantastic for streaming, podcasting, and recording alike.

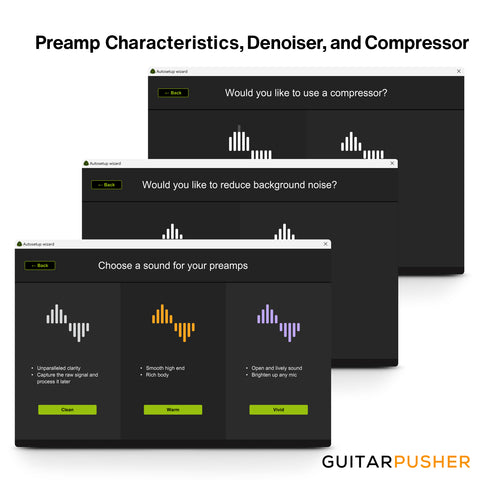

Three iconic preamp sounds for the right vibe.
Clean gives you unparalleled clarity and fidelity. Perfect if you want to process your signal further.
Warm provides a vintage vibe and helps to smoothen the high-end of overly bright microphones.
Vivid brings even your dullest-sounding microphone alive and adds articulation by boosting the right frequencies.

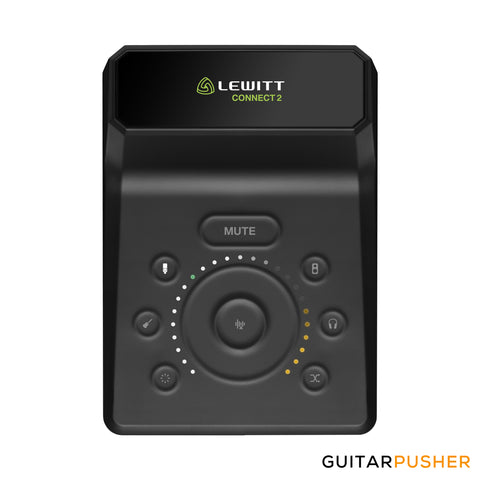

Direct mute control for all channels.
Mute all channels separately on hardware- and software, or if things are getting out of control, hold MUTE to globally mute everything until you reset your channels the way you want.

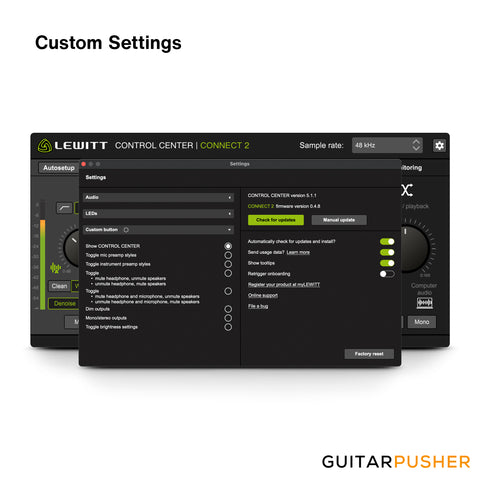

Custom button for workflow shortcuts.
The custom button lets you assign one of many workflow shortcuts. You can switch from a recording to a monitoring scenario, bring up the CONTROL CENTER with a single push, and more.
Choose your favorite colors.
Choose your favorite colors and brightness for all the LEDs directly in the CONTROL CENTER - whatever fits your setup or taste.
The best performance for any microphone.
Whether you choose dynamic or condenser, CONNECT 2 will yield the best results with its high-end microphone preamp. It offers up to 72 dB gain, so you'll never need an additional signal booster and an incredible dynamic range of 118 dB(A).
Authentic listening for your headphones.
- Zero Ohm headphone outputs retain your headphones' frequency response
- High-impedance mode for high-impedance studio headphones
- Headphone output in both sizes
Tailored input for instruments.
The differential Hi-Z input works with any guitar, from vintage single coils to modern active humbuckers. It delivers extra clarity to make your recordings sound fresh and defined. Its ground break loop circuit allows for enhanced hum immunity.

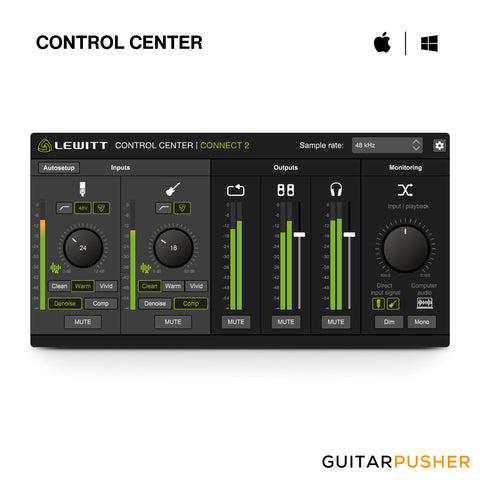

Get the free CONTROL CENTER software to unlock powerful features.
Available for Mac and Windows.
Input and playback monitoring - the audio coming from your computer, can be set at any ratio. Exactly what you need for your perfect performance.
Loopback allows you to easily capture the playback audio of your computer. Record samples, Zoom calls, create streaming setups, or play along with your favorite YouTuber.
Includes all the software you need to start.
Plug and play on your Mac without any additional software. For Windows devices, the LEWITT ASIO driver is required for optimal recording and playback performance.
Every CONNECT 2 comes with a license for Cubase LE and Cubasis LE for free, so you can start recording right away. Simply register on myLEWITT after your purchase and get your license. Don't miss out!
Great sound is for everyone.
New to LEWITT? Great sound is not achieved by your equipment alone. It's your skill set, mood, confidence, and drive that enable fantastic results. We create gear that aims to reduce technical barriers so you can focus on your creativity.
Specifications
Digital
USB-C, 44.1 / 48 / 96 kHz / 24 bit
Compatible with Mac, Windows, iOS
ASIO driver - Yes
DSP-powered – Yes
Loopback - Yes
Microphone preamp
Features: DSP (Autosetup, Low-cut filter, Clipguard, 3 iconic preamp sounds, Denoiser, Compressor,
Autogain)
Connector: 3-pin XLR
Phantom power: 48 V
Gain range: 72 dB
Dynamic range: 118 dB (A)
Frequency response: 20 Hz – 20 kHz
Equivalent input noise: -129 dBV (A)
Total harmonic distortion + noise: 0.001%
Hi-Z instrument channel
Proprietary and confidential. Do not distribute. 4
All rights reserved by LEWITT GmbH.
Features: DSP (Autosetup, Low-cut filter, Clipguard, 3 iconic preamp sounds, Denoiser, Compressor,
Autogain)
Connector: 1/4-inch instrument jack
Gain range: 60 dB
Dynamic range: 121 dB (A) with Clipguard
Frequency response: 20 Hz – 20 kHz
Equivalent input noise: -108 dBV (A)
Total harmonic distortion + noise: 0.0008%
Input impedance: 2.5 MOhm

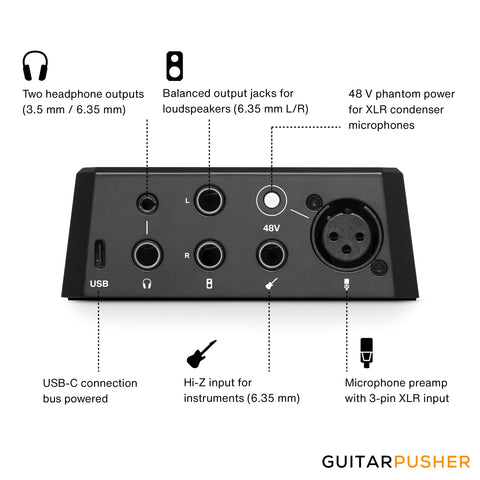

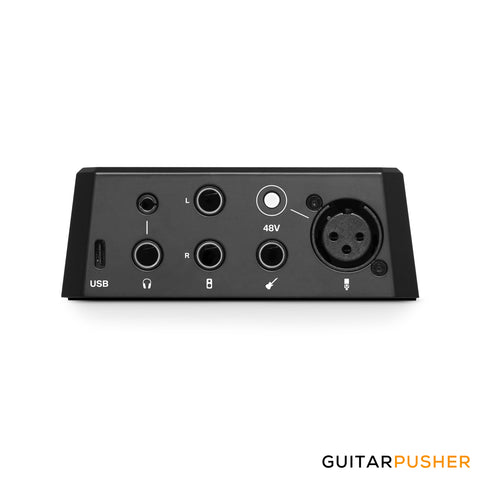

Line out L/R
Features: High volume speaker mode, Mute, Volume, Map system volume controls
Connector: 6.35 mm (1/4 inch) balanced jack
Frequency response: 20 Hz - 20 kHz
Max output level: 12.2 dBV (high volume mode)
Total harmonic distortion + noise: 0.002%
Impedance: 200 Ohm
Headphones
Features: High impedance headphone mode, Mute, Volume, Map system volume controls
Connector: 3.5 mm (1/8 inch) stereo jack, 6.3 mm (1/4 inch) stereo jack
Frequency response: 20 Hz - 20 kHz
Max output level: 6.8 dBV (high impedance mode)
Total harmonic distortion + noise: 0.003%
Impedance: 1.9 Ohm
Power requirements
Bus powered USB-C
Requires camera connection kit with iPhone and iPad
Box contents
1 CONNECT 2 audio interface
CONTROL CENTER software
1 USB-C to USB-C cable
1 USB-C to USB-A adapter
Licenses for Steinberg Cubase LE & Cubasis LE
