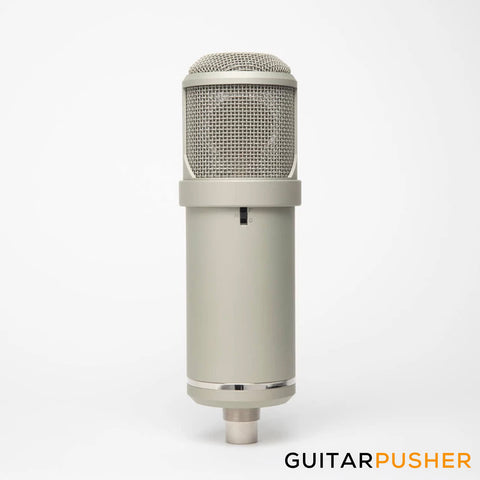

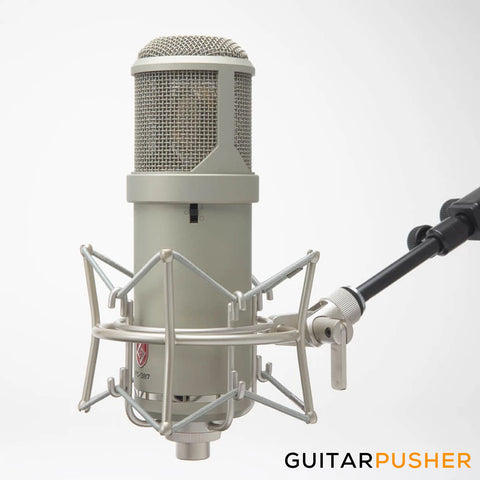

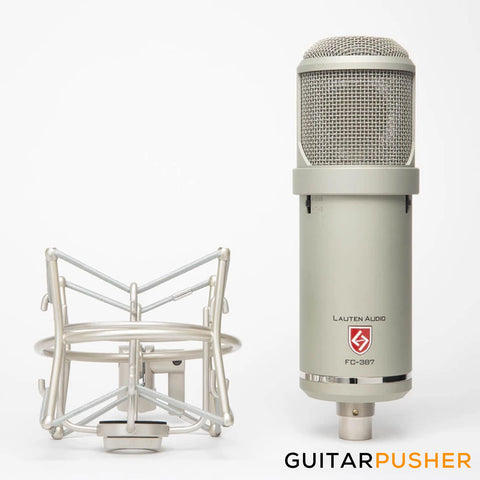

Lauten Audio Signature Series Atlantis FC-387 Extra Large Diaphragm FET Condenser Microphone
THREE DISTINCT FET MICROPHONES IN A SINGLE ENCLOSURE
FEMALE & MALE VOCALS // ACOUSTIC GUITAR // DRUM ROOM
EXTRA LARGE DIAPHRAGM FET CONDENSER
The Atlantis is three distinct FET microphones packed into a single, hand-finished brass enclosure. Designed in close collaboration with renowned producer and mix engineer Fab Dupont, the Atlantis provides a dynamic and versatile wealth of sound that makes picking the right microphone for even the most troublesome sources as easy as flipping a switch. From modern, tight and bright to smoky vintage velvet, the Atlantis offers an analog abundance of ready-for-mix sounds in a single microphone.
MULTI VOICING ®
CHANGE MICROPHONES WITHOUT CHANGING MICROPHONES
FORWARD is bold, present and modern, but never harsh.
NEUTRAL is smooth and earthy with a natural balancing of sibilant sounds.
GENTLE is dark and sultry with a warm vintage feel, ideal for taming bright or abrasive sound sources.
ONE OF A KIND CAPSULE
A microphone's capsule captures music's most meaningful moments and converts them into electricity with relentlessly unforgiving results. Our precision-crafted 38mm capsule is one of the largest in the world -- a one of a kind super-transducer designed in Silicon Valley and tuned by hand to capture the spirit, soul, and wonder of a performance with unprecedented authenticity and realism.
THREE POLAR PATTERNS
EACH SELECTION DETERMINES WHAT THE ATLANTIS HEARS
FIGURE-8 captures sound equally from the front and back of the microphone for a more open, natural recording.
CARDIOID captures sound from the front of the microphone only. This is the most commonly used polar pattern for recording vocals with minimal room reflections.
OMNIDIRECTIONAL captures sound equally from all sides of the microphone for authentic, "in-the-room" instrument and vocal recordings.
The Atlantis signal path is populated with high resolution, low distortion polypropylene capacitors, a US-made low-noise FET, and a custom-wound output transformer that puts the finishing touches on every sound that passes through its copper windings. The result is a smooth, mix-ready sound brimming with life.
THREE-WAY GAIN STAGING
+10dB is ideal for use with quiet sound sources and consumer-grade audio interfaces where more character from the microphone itself is desired.
0dB sets the output of the Atlantis to its default output gain selection.
-10dB is useful when more color and saturation from a high-end preamp is desired, or when paired with very loud sounds.
SPECIFICATIONS & DIAGRAMS
- Type: Pressure gradient FET condenser
- Capsule: 38mm dual diaphragm
- Polar Patterns: Cardioid/Omnidirectional/Figure-8
- Freq. Response: 20hz - 20khz
- Dynamic Range: 120dB Minimum
- Max. SPL: 0.5% THD @ 1000hz: 130dB
- Impedance: <200ohms
- Self-Noise Level: < 12dB(A)
- Sensitivity: 16MV/PA or 36+2dB ODB=1V/PA 1khz
- Connector: 3-Pin XLR
- Finish: Cerakote (Ceramic)
- Power: Requires included PSU (Switchable to 100V to 240V)
