GØRVA Design Replacement Footswitch - 3PDT, Mechano, Soft Click
Product Description
Footswitch - 3PDT, GØRVA Design, Mechano, Soft Click

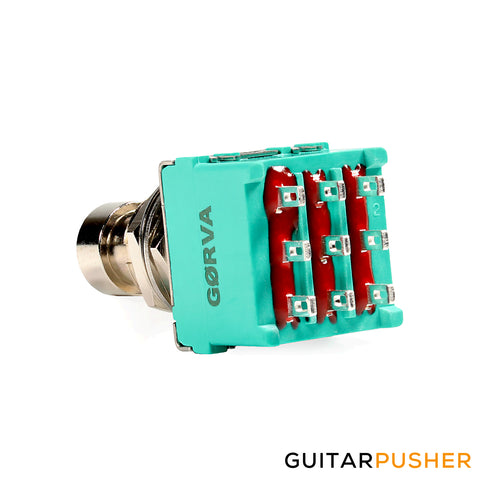

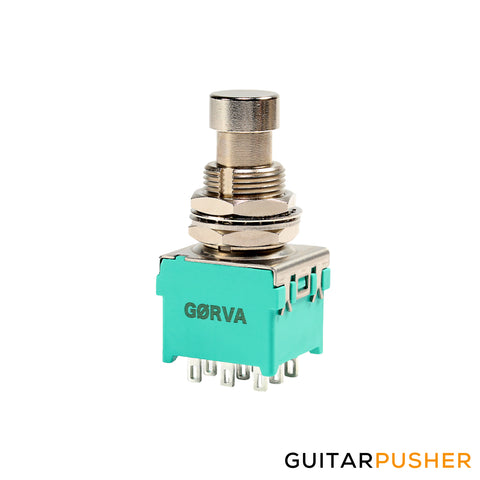

The Gorva Mechano is a premium 3PDT soft-touch latching footswitch. Gorva Designs have quickly established themselves as a high quality pedal parts company with their enclosures, see P-H1590BB-GORVA-X and P-H1590N1-GORVA-X, and the Mechano switches are no exception. With a life rating of 30,000 cycles, these switches outperform most stompbox switches.
Features
- 3PDT latching stomp switch
- Soft touch actuation with a force of 1.0±0.3Kgf
- Green Case
- RoHS & Lead-free
Measurements
Actuator Shaft Length | 5 mm | |
Actuator Top Diameter | 10 mm | |
Actuator Top Height | 5 mm | |
Body Height | 16.7 mm | |
Body Length | 19.6 mm | |
Body Width | 17 mm | |
Bushing Keyway | 2 mm | |
Bushing Length | 11.5 mm | |
Bushing Thread | M12*P0.75 | |
Contact Resistance | Typically 10 mΩ (30 mΩ Max) | |
Dielectric Strength | 500 V RMS @ Sea Level | |
Electrical Life | 30,000 Cycles | |
Insulation Resistance | DC 500 V 100 MΩ Minimum | |
Operating Force | 1.0±0.3Kgf | |
Operating Temperature | -10 °C ~ +70 °C | |
Panel Mount Cutout | 12.5 mm | |
Power Rating | 9 VDC, 1 A | |
Solder Lug Length | 3.2 mm | |
Solder Lug Spacing Length | 5.3 mm | |
Solder Lug Spacing Width | 4.8 mm | |
Solder Lug Thickness | 0.75 mm | |
Solder Lug Width | 2 mm |
