Product Description

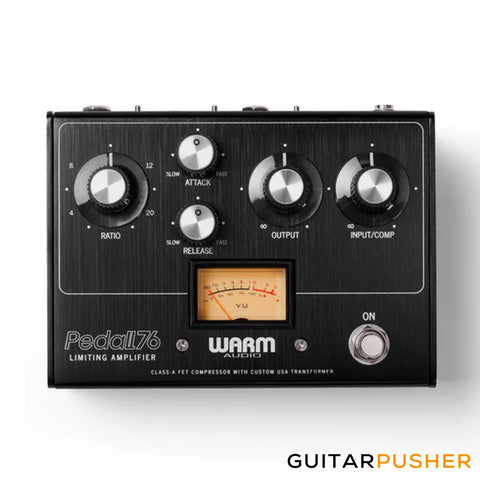

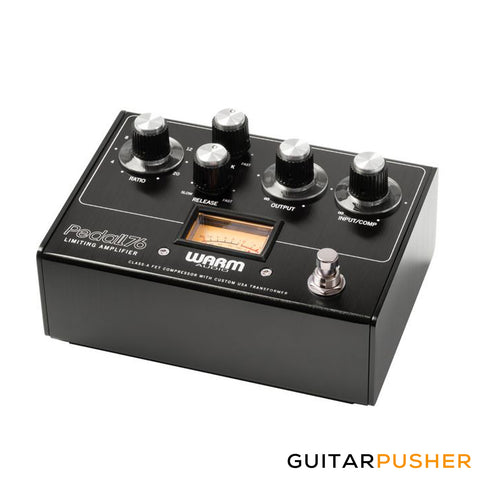

Pedal76

All-Analog Transformer-Balanced FET Compressor Pedal

Recreating Legendary Studio Compression For Your Pedalboard

Classic Studio Compression Recreated For Your Pedalboard

Pedal76 accurately reproduces one of the fastest and most powerful studio compressors of all time, known for having ultra-fast attack and release and adding sweet analog tone to any source. Just like in the studio, Pedal76 has Attack & Release, Ratio, and Input controls, critical for taming unwanted changes in volume on stage. Backed by over 10 years of expertise delivering premium, award-winning studio compression with the Warm Audio WA76, the Pedal76 is capable of bringing out the wide range of legendary compression tones from subtle to hard-limiting as favored by celebrated artists such as Led Zeppelin, Pink Floyd, Periphery, Jack White and many more.

Studio-Quality Sound, Stage-Ready Control

To achieve authentic 76-style FET compression, Pedal76 is built with an all-analog circuit and premium components, including a custom CineMag USA transformer. Spec’d to duplicate the professional performance of the studio units, this transformer adds rich harmonic content, and, in high gain mode, a bit of audible overdrive reminiscent of the most prized studio originals. Pedal76 features gig-ready controls like an external switch for true/buffered bypass, ensuring the compressor plays nice in your rig. Switches for input sensitivity, ground/lift, pad and high/low gain modes (both for DI operation) provide added utility at gigs or in the studio. The separate (DI) out also sends a balanced signal to any mixer or live recording rig.

Applications

• Squishy Funk & Chicken Pickin': Smash any light playing and make transients stick out without losing low end.
• Lead & Solo Sustain: Add sustain to bends and lead tones for epic solos that sit on top of the mix.
• Big Studio Basss: Add growl and grit, shape slaps and transients, and deliver studio bass tone on any stage.
• Pristine Drive & Rhythm Tone: Level out arpeggios and add clarity to picked notes and rhythm guitar, whether clean or driven.

Settings

Getting Started With Classic Sounds

Funky-Munks

Instant Studio Bass

Post-distortion Rhythm

Studio-Sound Rhythm

Technical Specifications

Product Description & External Specs

• All-Analog Transformer-Balanced FET Compressor Pedal

• Classic 76-Style Compression Controls: Ratio, Attack, Release, Output, & Input

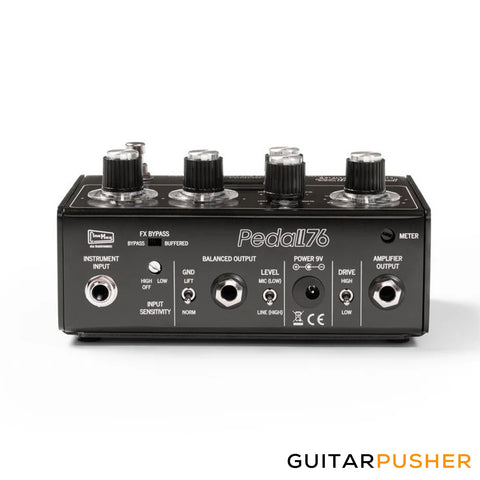

• Additional Controls: Input Sensitivity, Ground/Lift, DI Output Pad, DI High/Low Gain With Level Boost On Balanced Output

• External True Or Buffered Bypass Switch

• Vintage-Style Amber VU Meter For Gain Reduction Indication

• External Power Supply With 9V Battery Compartment. External Power Supply Leverages Internal Voltage Increase Via DC-DC Voltage Converter

• Dimensions: 5.9” x 4.1” x 1.9” | Weight: 1.65 lbs

Components & Internal Specs

• Custom CineMag USA Output Transformer (Engaged With External Power)

• Ultra Low-Noise With 100% Discrete Analog Signal Path

• When Using External Power, Pedal76 Requires 125mA

Components

Premium Components - Elite Build Quality - Superior Sound

Custom Cinemag USA Transformer

The custom CineMag USA transformer is spec’d to duplicate the professional performance and tone of studio units in a pedalboard-friendly format. CineMag owns all of the original datasheets & specs from Reichenbach Engineering, the company that built the original transformers in the vintage 1176 studio compressors.

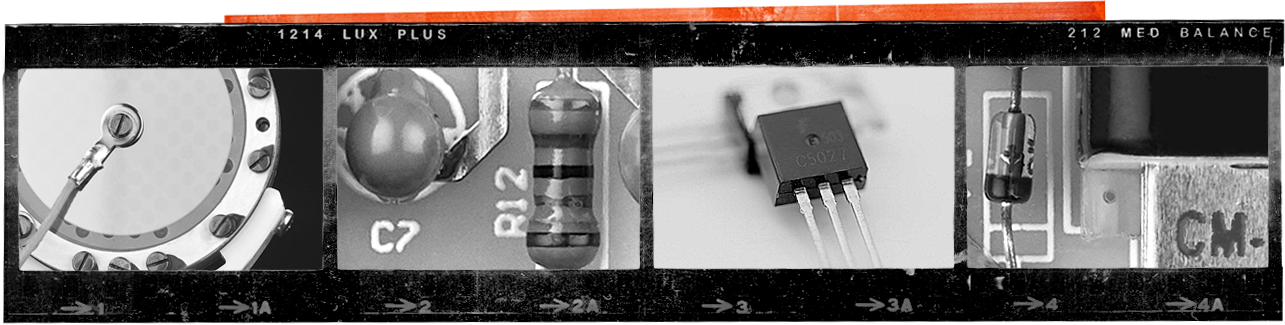

Premium Circuitry, Fit & Finish

Pedal76 has a custom enclosure with accurately tapered, studio-grade knobs and switches. The circuit is loaded with premium capacitors, resistors, and transistors round out a pedal that cuts no corners in delivering an authentic studio compression experience on stage.

Hand-Tested & Inspected In Austin, TX USA

Every single Pedal76 is meticulously hand-inspected and calibrated at Warm HQ in Austin,TX by real musicians and engineers with a passion for superior sound.
