Product Description

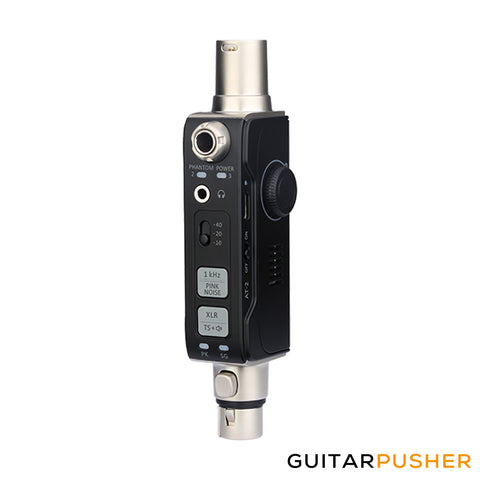

AT-2 Audio Tester Pro

• Signal Generator emits 1 kHz tones or pink noise audio signals
• XLR Cable Tester for detecting whether XLR cables are damaged
• XLR Input Metering to measure the strength of XLR input signals
• Phantom Power Check to test voltage and ensure normal operation
• Headphone and Speaker Monitoring to check input signals
• Suitable for testing powered PA speakers, effect pedals, cables, DI boxes, IEM systems, mixers, and other audio equipment
• Charges via USB-C in 1.5 hrs; a full charge lasts up to 4 hours

This feature-packed, compact utility ensures that your cables and gear are always up to the gig!

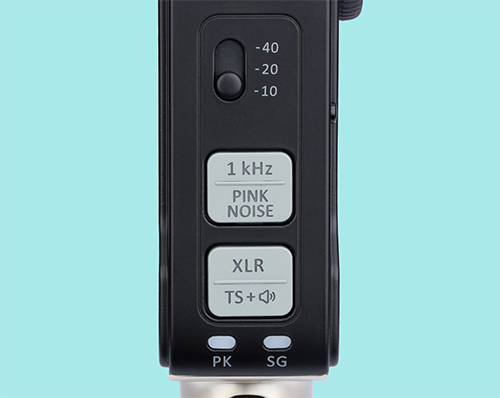

Signal Generator

Outputs a 1 kHz sine wave or pink noise audio signal through XLR male, 1/4″, and 1/8″ connectors, with three output level options: -10 dB, -20 dB, and -40 dB.

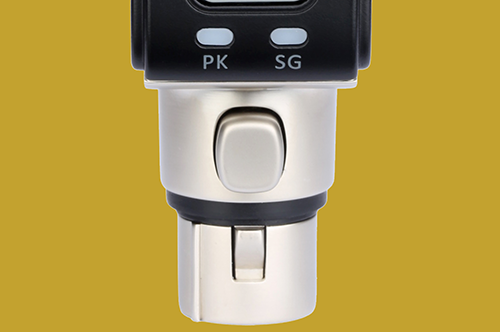

XLR Input Metering

Measures the input volume level of the XLR female connector.

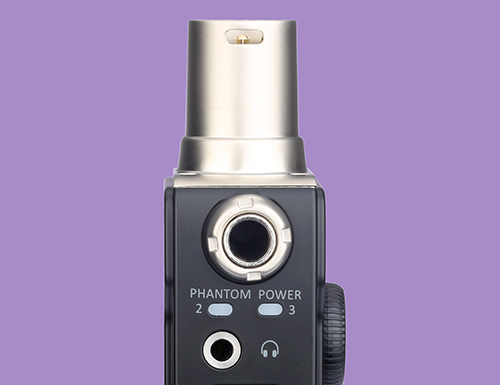

Phantom Power Check

Tests the output voltage of the phantom power and ensures both pins are functioning properly.

Headphone and Speaker Monitoring

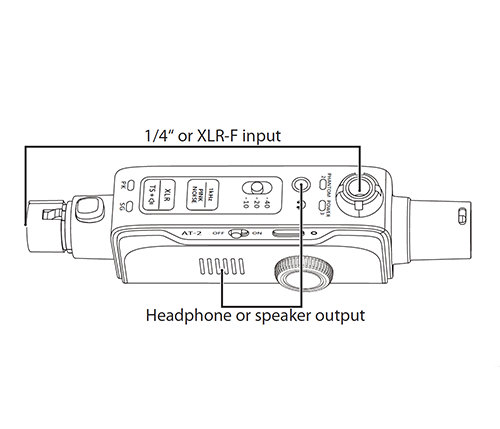

When an audio source is connected to the XLR female / 1/4″ input, you can monitor the signal with headphones or speakers via the 1/8″ headphone jack.

ALSO INCLUDED

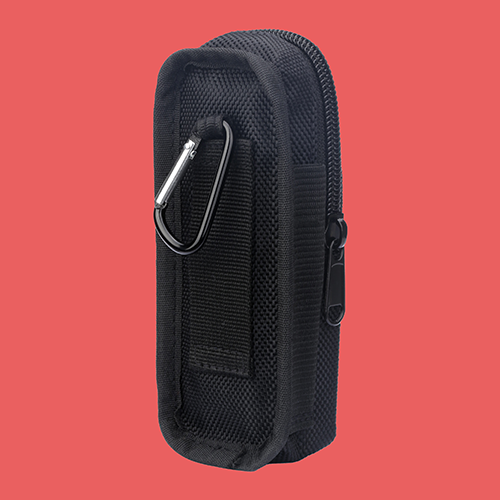

A holster pouch, a 1/4″ male to 1/4″ male (6.35 mm to 6.35 mm) adapter, and a USB-C charging cable

Specifications
