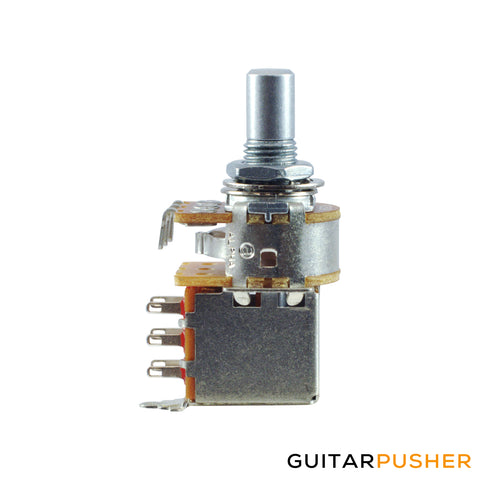

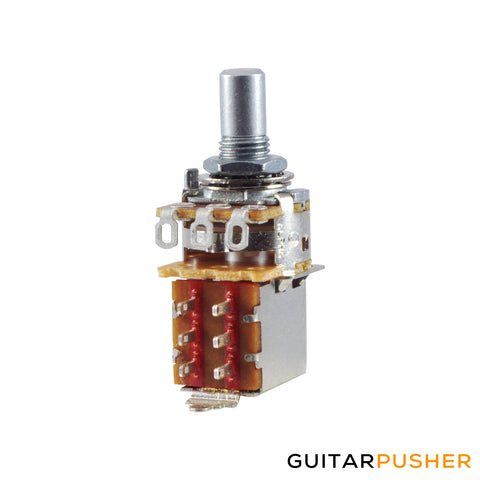

Alpha 250k Audio Taper Potentiometer DPDT 7mm Solid Shaft
Product Description
Potentiometer - Alpha, 250kΩ Audio, Solid Shaft, DPDT, 7mm
Potentiometer - Alpha, 250K Audio, DPDT Push Pull Switch, Solid Shaft, 7mm Bushing
| Body Depth | 26.5 mm | ||
| Body Width | 18 mm | ||
| Bushing Length | 6.5 mm | ||
| Bushing Thread | M7X0.75 | ||
| Hex Nut Thickness | 2 mm | ||
| Hex Nut Width | 10 mm | ||
| Insulation Resistance | ＞100 MΩ at 500VDC | ||
| Life | 15,000 cycles | ||
| Max. Working Voltage | 150V | ||
| Max Rotational Stopper Strength | 6Kgf | ||
| Operating (Useable) Temperature | -10 °C to +70 °C | ||
| Rated Wattage (Power) | 0.1W | ||
| Resistance | 250 kΩ | ||
| Rotational Torque | 10-100 gf-cm | ||
| Shaft Diameter | 6 mm | ||
| Sliding Noise | <47 mV | ||
| Taper | Audio | ||
| Tolerance | ± 20% | ||
| Total Rotational Angle | 300° ±5° | ||
| Total Shaft Length | 15 mm | ||
| Washer I.D. | 7.1 mm | ||
| Washer O.D. | 12 mm | ||
| Washer Thickness | 0.4 mm | ||
| Withstand Voltage | 500 VAC for 1 min. | ||
