Tung-Sol 6V6GT Reissue Power Vacuum Tube - Apex Matched Pair
Product Description

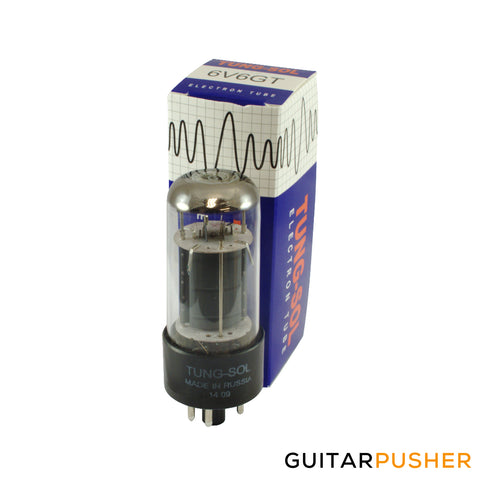

Vacuum Tube - 6V6GT, Tung-Sol Reissue (Apex Matched Pair)
Totally Tweed! The preferred OEM tube of '50s-era Fender Tweed Champ and Deluxe amplifiers The Tung-Sol 6V6 has a geometry designed to safely handle the higher voltages used in guitar amps " plus heavier plate and grid materials. The result.. better mids and bottom while keeping the smooth top of the classic 6V6's. The Tung-Sol 6V6 breaks up evenly from low E to high up the neck. Blues players will LOVE these tubes for the way they sing!
Measurements
| Capacitance, grid to plate | 0.7 pF | |
| Capacitance, input | 9.0 pF | |
| Capacitance, output | 7.5 pF | |
| Grid 2 Dissipation | 2 W | |
| Grid 2 Voltage | 285 V | |
| Grid Circuit Resistance (Rg), Cathode Bias | 0.5 MΩ | |
| Grid Circuit Resistance (Rg), Fixed Bias | 0.1 MΩ | |
| Heater-Cathode Voltage, negative (Uh/k-) | 200 V | |
| Heater-Cathode Voltage, positive (Uh/k+) | 100 V | |
| Heater Voltage | 6.3 V | |
| Plate Dissipation (Wa) | 12 W | |
| Plate Voltage (Ua) | 315 V |
