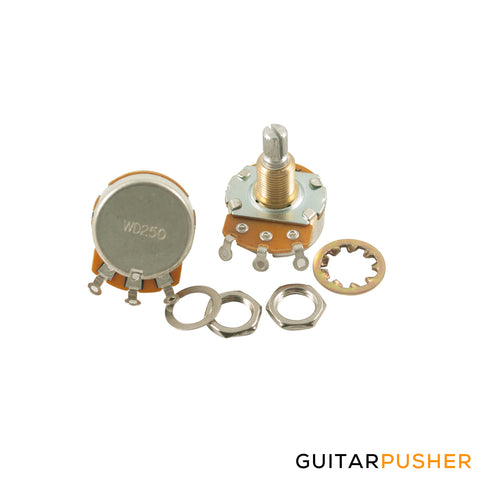

Alpha 250k Audio Taper Potentiometer 3/8 tall US Fit 24 Spline Split Shaft
Product Description
Alpha® full size potentiometer for USA instruments.
Time to replace your pots with the time-tested factory potentiometer - Alpha.
Alpha is an industry name in affordable but reliable potentiometers.
Push-Pull potentiometer is commonly used to do coil-splitting of humbucker pickups to produce single coil sounds from one of the coils of your humbucker pick up. This is achieved by shunting (shorting) one of the coils to ground using the DPDT switch of the push-pull. It can also be used to do series-parallel humbucker operation and many more. Please make sure that your humbucker has at least 3 wires to perform coil-split operation, or 4 wires for series-parallel wiring.
250k is best used with single coil pickups such as strat, tele, Jazz Bass, P-Bass.
500k is best used with humbucking pickups such as Les Paul, SG, Modern Guitars, Metal Guitars and Humbucker-equipped passive bass guitars.
Metric 8mm bushing diameter is perfect for Asian-made guitars with small hole such as Ibanez, Squier, JCraft, Cort, Tagima, Epiphone, Elegee, D&D, etc.
Measurements:
- Diameter= 24mm
- Bushing Threads = 3/8-32
Resistance:
- 250 kohm
Taper:
- Audio Taper
Shaft:
- Split Shaft (24 Tooth)
Bushing Length:
- Standard Bushing 3/8 in.
